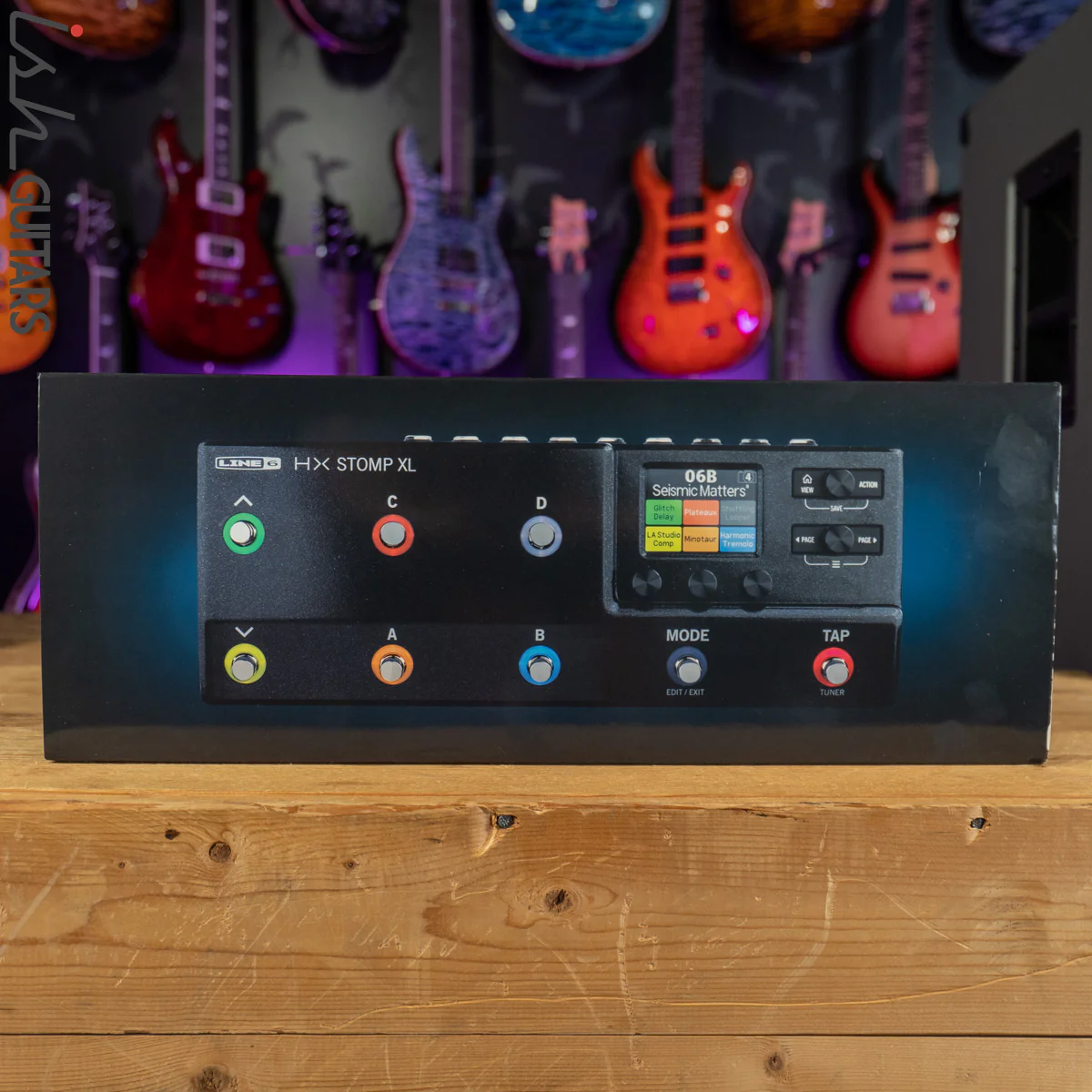

Line 6 Helix HX Stomp XL Multi Effects Processor

Line 6 Helix HX Stomp XL Multi Effects Processor

The HX Stomp^™ XL amp and effects processor delivers HX^® modeling in a performance-ready pedal with eight capacitive-touch footswitches. The same SHARC^® DSP chip found in Helix^® enables it to run up to eight processing blocks simultaneously, and the footswitches let you access and control those blocks in powerful ways.

Pedal Type: Multi-FX with USB Interface

Analog/Digital: Digital

Presets: 128 (32 banks x 4 presets), 4 Snapshots per preset

Number of Effects: 200+ (Helix & Legacy combined), Up to 8 simultaneous FX

Effects Types: 150 Helix, 77 Legacy

Amp Modeling: 80+ Amps, 40+ Cabinets

Impulse Response: Custom/3rd Party IR Support, Store up to 128 IRs

Looper:  60 seconds (mono), 30 seconds (stereo) ; 6-switch Looper, 1-switch Looper, Shuffling Looper

Inputs: 2 x 1/4" (L/mono,R), 2 x 1/4" (L/R, Aux/Return)

Outputs:  2 x 1/4" TRS (L/mono,R), 1 x 1/4" (stereo send)

MIDI I/O:  In, Out/Thru

USB: 1 x Type B (8 x 6)

Headphones: 1 x 1/4"

Other I/O: 1 x 1/4" TRS (expression 1/2)

Bypass Switching: Switchable: Analog, DSP

Features: 450MHz SHARC DSP Processor

Software:  HX Editor (librarian, IR loader)

Compatibility:  Windows, macOS

Power Source: 9V DC power supply (included)

Height: 2.7"

Width: 12.4"

Depth: 4.7"

Weight: 3.3 lbs.
